EVDC | 18K-A++
| BASIC INFORMATION |
| Rated Capacity |
|
|
| Cooling |
Btu |
17400(6500-19500) |
| Heating |
Btu |
19000(6800-20500) |
| Rated Running Current |
|
|
| Cooling |
A |
7.2(1.4-8.8) |
| Heating |
A |
6.5(1.8-9.1) |
| Max. Input Power |
W |
2600 |
| Max. Input Current |
A |
12 |
| EER Cooling |
W/W |
5.8 |
| COP Heating |
W/W |
3.8 |
| Power Supply Source |
V/Ph/Hz |
220~240V/50Hz |
| Refrigerant |
|
R410A |
| Refrigerant Charged |
g |
1400 |
| Max. Discharge Pressure |
Mpa |
4.15 |
| Max. Suction Pressure |
Mpa |
1.15 |
| Air Flow Volume |
m3/h |
1000 |
| Indoor Unit Noise Power |
dB(A) |
45 |
| Outdoor Unit Noise Power |
dB(A) |
54 |
| Indoor Unit Weight(Net) |
Kg |
14 |
| Outdoor Unit Weight(Net) |
Kg |
38 |
| Container Loading 40HC |
Units |
195 |

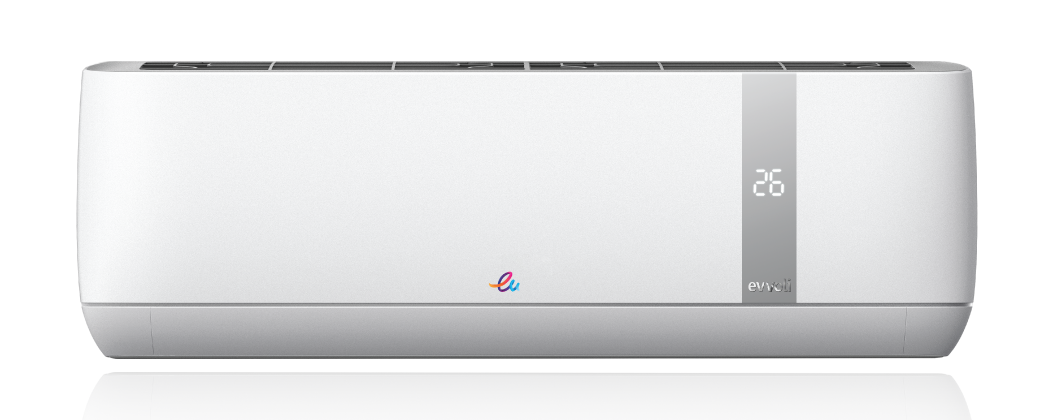

| INDOOR UNIT |
| Evaporator |
|
|
| Bend |
|
3 |
| Evaporator Row |
|
2 |
| Evaporator Pipe Diameter |
mm |
7×0.24 |
| Indoor Fan Motor |
|
YYK30-4 |
| Dimension |
|
|
| Net Dimension |
mm |
940x316x224 |
| Packing Dimension |
mm |
1010x385x310 |
| CONNECTION |
| Stop Valve |
|
|
| Liquid Valve |
mm |
Φ6.35 |
| Gas Valve |
mm |
Φ12.7 |

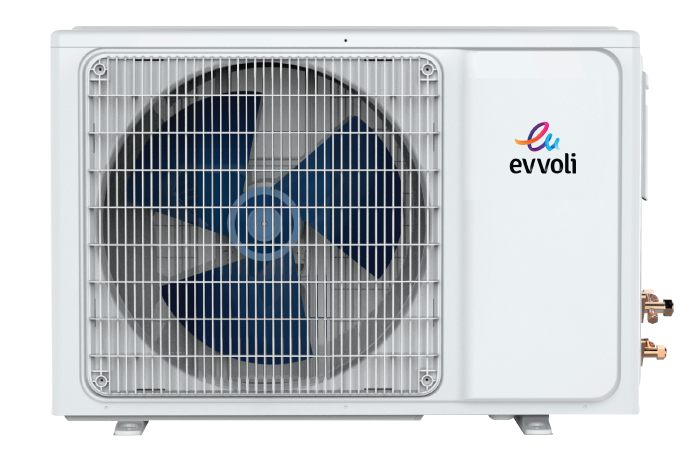

| OUTDOOR UNIT |
| Compressor Brand |
|
GMCC |
| Compressor Model |
|
ASM135 |
| Outdoor Fan Motor |
|
D-40-8 |
| Condenser Pipe Diameter |
mm |
7×0.24 |
| Condenser Row |
|
2 |
| Dimension |
|
|
| Net Dimension |
mm |
802×298×535 |
| Packing Dimension |
mm |
920×400×620 |
