| BASIC INFORMATION |
| Rated Capacity |
|
|
| Cooling |
Btu |
31800 |
| Heating |
Btu |
– |
| Rated Running Current |
|
|
| Cooling |
A |
18.5 |
| Heating |
A |
– |
| Max. Input Power |
W |
5000 |
| Max. Input Current |
A |
26.5 |
| EER Cooling |
W/W |
2.87 |
| COP Heating |
W/W |
– |
| Power Supply Source |
V/Ph/Hz |
220～240V-1-50Hz |
| Refrigerant |
|
R22 |
| Refrigerant Charged |
g |
2750 |
| Max. Discharge Pressure |
Mpa |
3.2 |
| Max. Suction Pressure |
Mpa |
0.8 |
| Air Flow Volume |
m3/h |
1600 |
| Indoor Unit Noise Power |
dB(A) |
52 |
| Outdoor Unit Noise Power |
dB(A) |
60 |
| Indoor Unit Weight(Net) |
Kg |
18 |
| Outdoor Unit Weight(Net) |
|
68 |
| Container Loading 40HC |
Units |
95 |

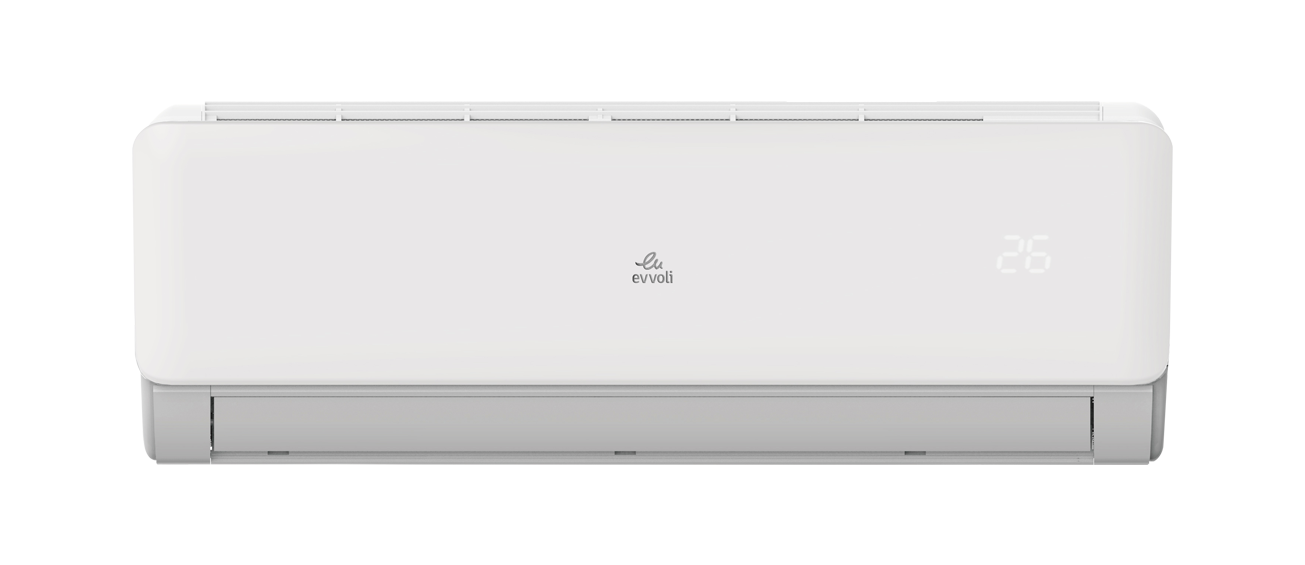

| INDOOR UNIT |
| Evaporator |
|
|
| Bend |
|
3 |
| Evaporator Row |
|
2 |
| Evaporator Pipe Diameter |
mm |
Φ7×0.24 |
| Indoor Fan Motor |
|
D-310-50 |
| Dimension |
|
|
| Net Dimension |
mm |
1250x358x253 |
| Packing Dimension |
mm |
1340x445x355 |
| CONNECTION |
| Stop Valve |
|
|
| Liquid Valve |
mm |
Φ6.35×0.5 |
| Gas Valve |
mm |
Φ15.88×0.75 |
| OUTDOOR UNIT |
| Compressor Brand |
|
KK |
| Compressor Model |
|
AW5542 |
| Outdoor Fan Motor |
|
YDK85-6E |
| Condenser Pipe Diameter |
mm |
Φ7×0.24 |
| Condenser Row |
|
2 |
| Dimension |
|
|
| Net Dimension |
mm |
975×803×390 |
| Packing Dimension |
mm |
1105×890×495 |
